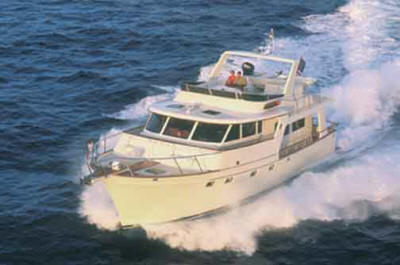

ME 53C
The ME53C was created in response
to customer's repeated requests for a smaller version of the previously
introduced larger Marlow Explorers. This yacht is fully capable of
extended ocean cruising but is easily managed by a couple. The 53C's
large fiberglass fuel and stainless steel water capacities allow far
ranging destinations and the unique and proven hull design guarantees
comfort in less than ideal conditions should they arise. The ME53C will
astonish you with the internal volume. With a beam of only 2" less than
the 57-65' series, it provides the wonderfully spacious stand up engine
room Explorers are noted for and commodious interior spaces from the
saloon to the staterooms. There are three staterooms below, master and
VIP, with full heads and one more guest stateroom that can double as an
at-sea office. The u-shaped galley is in the aft part of the raised
pilothouse and features every convenience and appliance to make your
galley duties a pleasure. The dinette is next to the helm and is
comfortable, roomy and presents a lovely view through the pilothouse
windows. Two steps down from the pilothouse is the saloon with built-in
seating that doubles as storage with pneumatic lifting hinges, wet bar
with storage, TV/Stereo cabinets and lovely teak coffee table.
Photo Gallery 53C
|
|
|
|

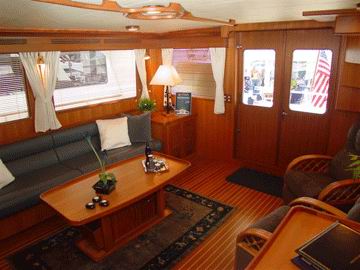

Salon
|
|
|
|

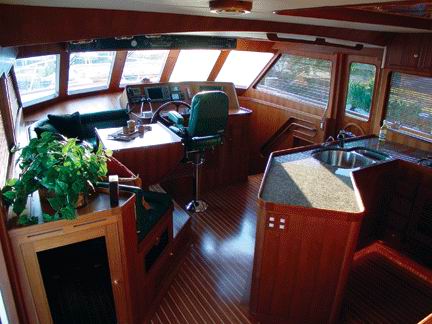

Helm
|
|
|
|
Master Stateroom
|
|
|
|

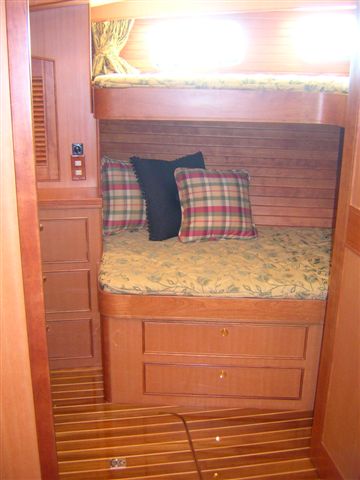

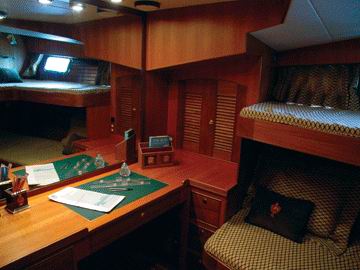

Office/Third Stateroom
|
|
|
|
Engine Room
|
|
|

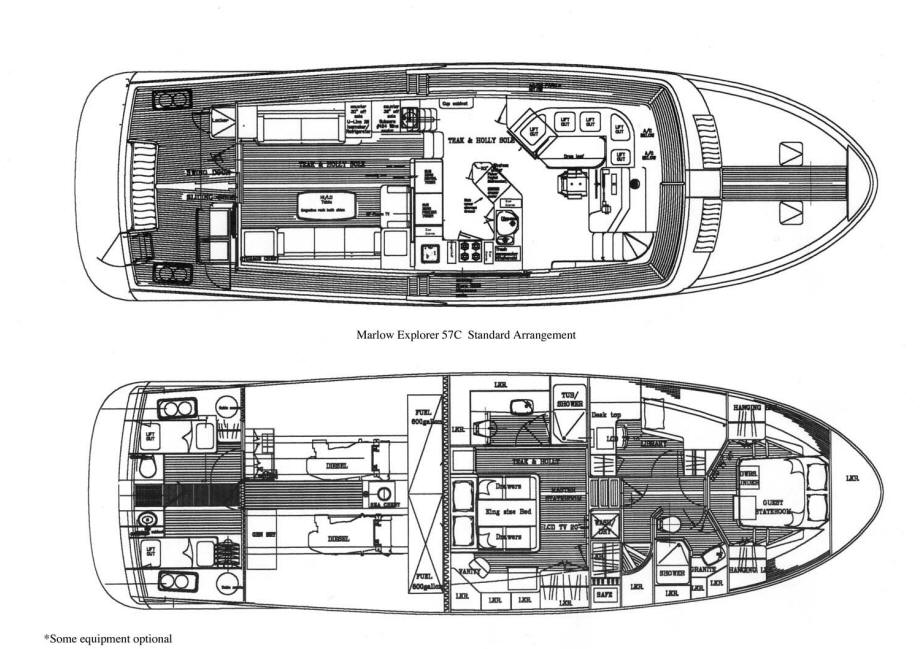

Standard layout 53C
ME57E CB

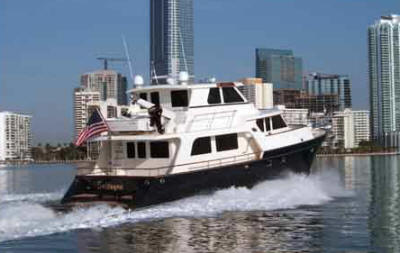

The ME57E Command Bridge is the first yacht
we've delivered with this option. The Command Bridge is an enclosed flybridge
where the Captain can run the boat in comfort out of the elements with

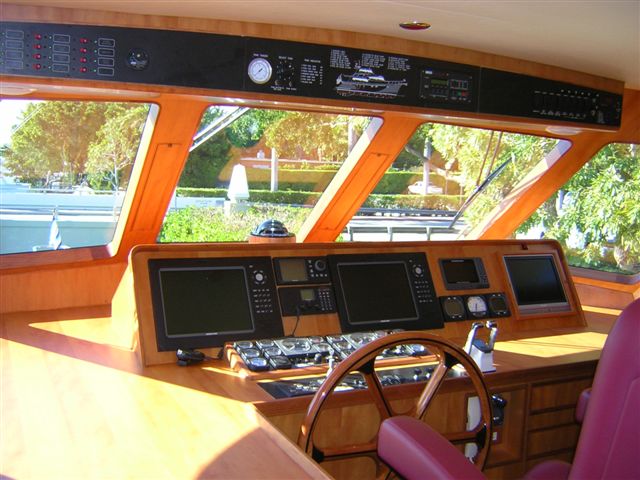

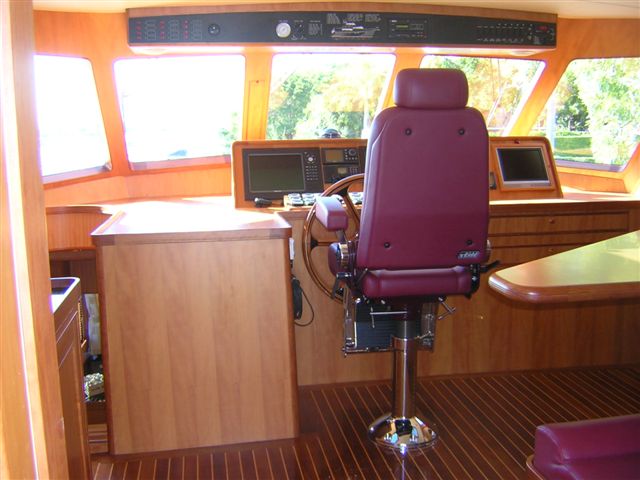

room for guests in a spacious dinette-settee area. The helm is on
centerline facing a console with a panoply of electronics and gauges.
Overhead, conveniently in reach, are the instrumentation switches and
alarm panel, and to the right is a chart table and storage area for all

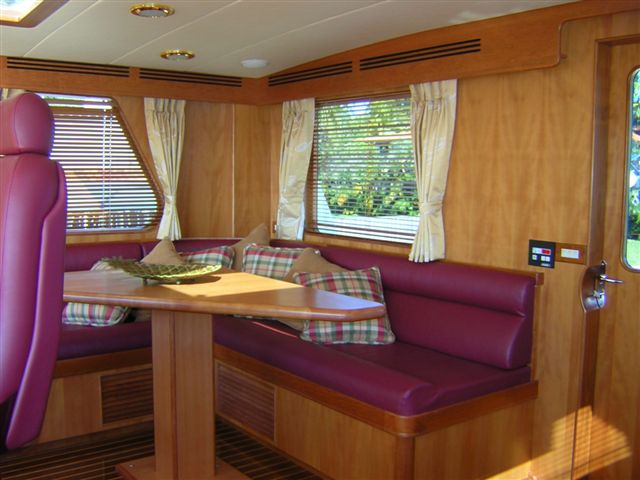

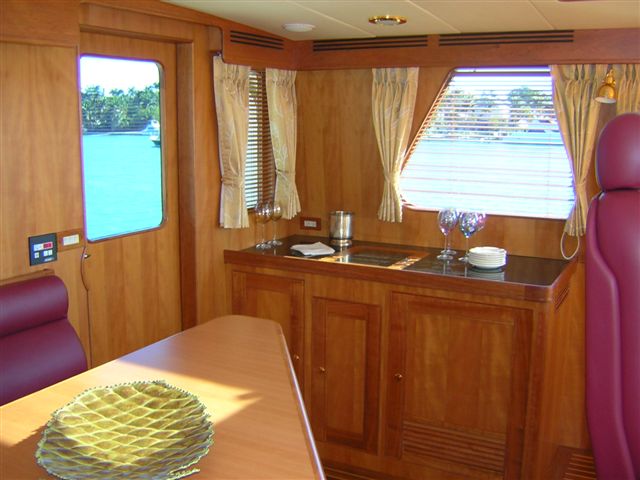

your navigation gear. Guests can relax in the lounge area that is served
by a wet bar and refrigerator. With the helm in this Command Bridge, the
pilothouse is freed up for an interesting and different arrangement. The

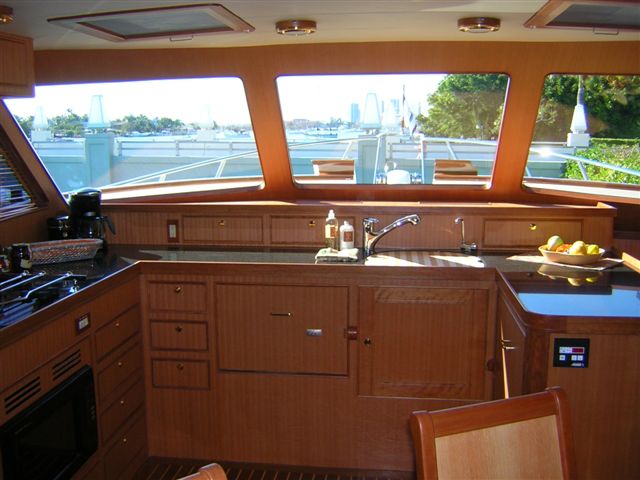

galley wraps around under the pilothouse windows and features a glass
cooktop, optional under counter refrigerator/freezer drawers and
microwave/convection oven below resulting in a clean and accessible

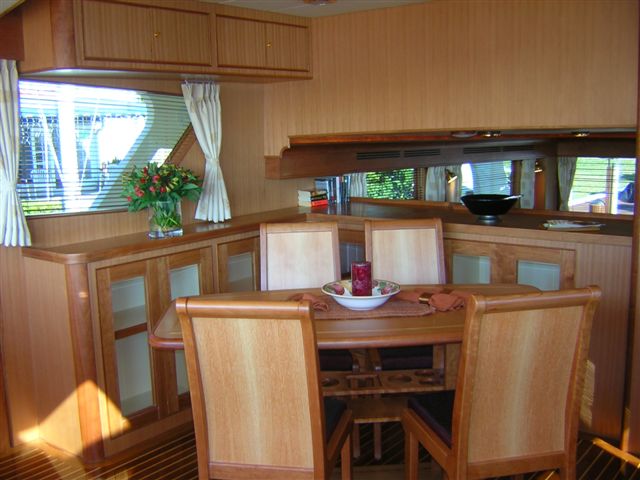

galley with a view. In the aft section of the PH, is a large dining room
table with seating for six in front of beautiful glass fronted china

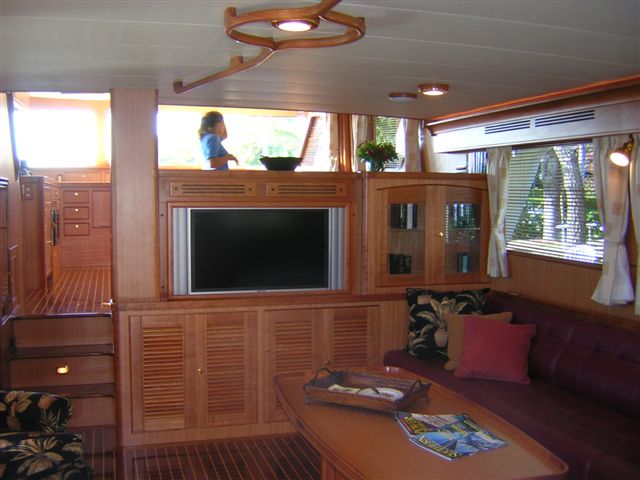

cabinets with buffet tops. The saloon features a large built-in sofa
with storage under accessible by lifting the seats on their pneumatic
lift hinges. The companionway to below leads from the pilothouse to an
open foyer created by using double folding doors on the guest

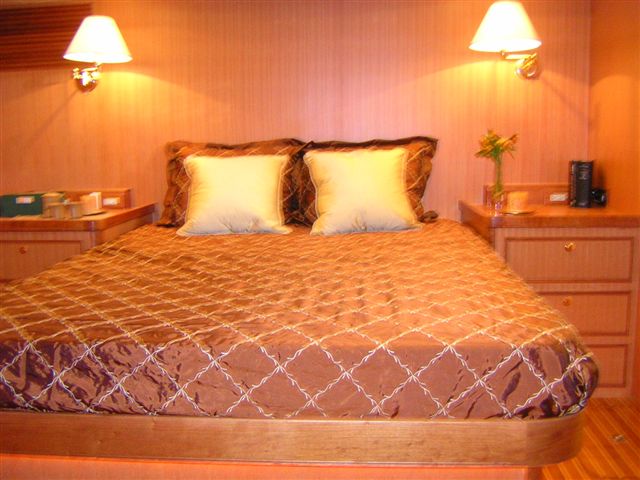

stateroom/office. The master stateroom spans the full beam with a king
sized bed, full height hanging lockers, chest of drawers and under bed
drawers. The master head has a large stall shower, molded fiberglass
counters trimmed with your choice of woods and elegant Grohe fixtures.

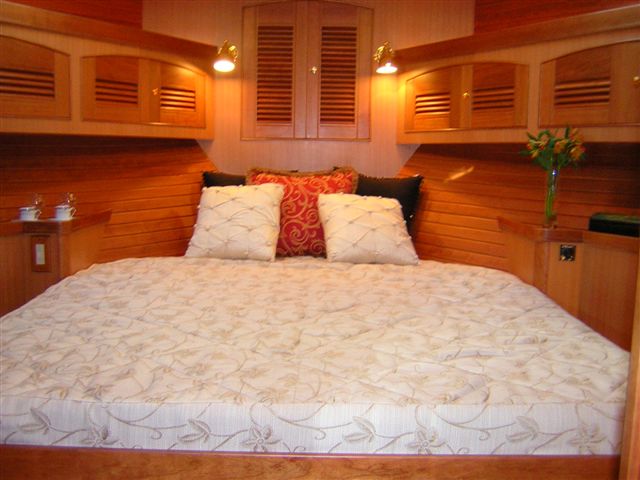

The VIP has a queen sized berth, twin hanging lockers, multiple storage
drawers and lockers and a beautifully detailed head and shower.
Photo Gallery 57E
57E Standard layout

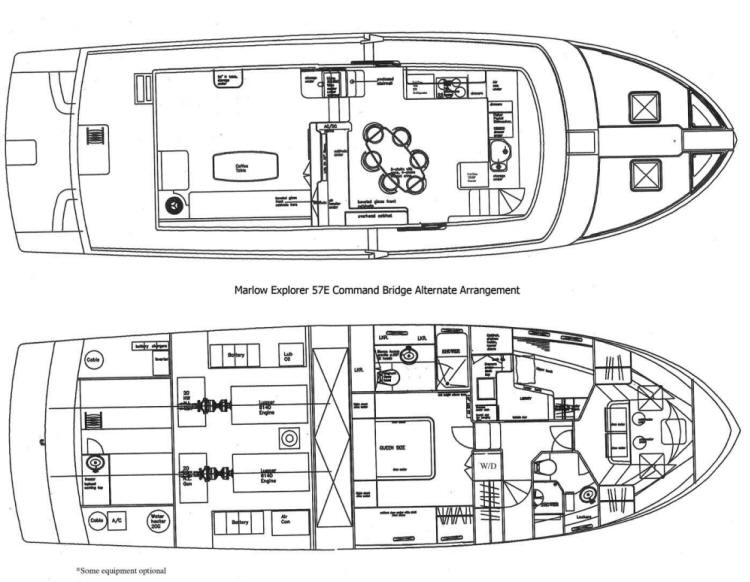

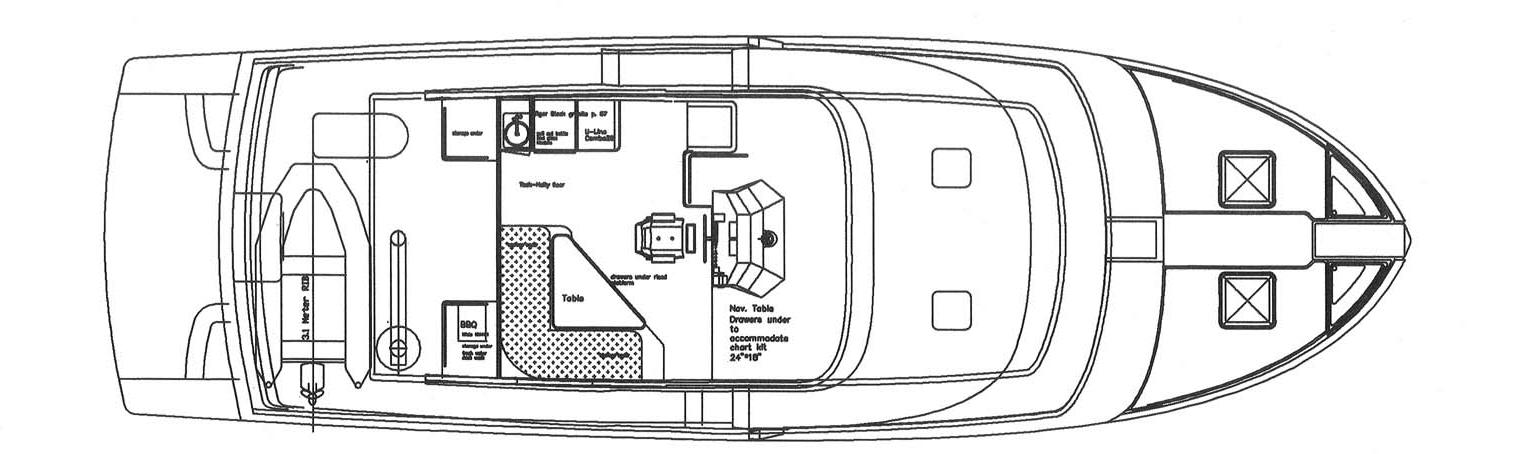

57ECB Standard layout
Specifications
| |
53C |
57E |
|
|
|
| Centerline Length |
54'3"/16.54m. |
58'3"/17.75m. |
| Length Overall (LOA) |
61'10"/18.85m. |
62'2"/18.95m. |
| Length at Waterline (LWL) |
49'0"/14.94m. |
53'0"/16.15m. |
| Beam |
18'2"/5.54m. |
18'2"/5.54m. |
| Draft |
4'2"/1.27m |
4'2"/1/27m. |
Height - waterline
to top of radar arch |
17'8"/5.38m. |
17'8"/5.38m. |
| Displacement (approx) |
59,000 lbs./26,762 kg. |
61,000 lbs./27,669 kg. |
| Fuel Capacity |
1200 Gal./4542 L. |
1200 Gal./4542 L. |
Water Capacity
Drinking |
50 Gal./189 L. |
50 Gal./189 L. |
Water Capacity
Domestic |
250 Gal./949 L. |
250 Gal./949 L. |
| Holding Tank Capacity - Black |
120 Gal./454 L. |
120 Gal./454 L. |
| Holding Tank Capacity - Grey |
120 Gal./454 L. |
120 Gal./454 L. |
| Standard Generator |
Onan 17KW @60Hz/ 13.5 KW @ 50Hz |
Onan 17KW @60Hz/ 13.5 KW @ 50Hz |
| Standard Power |
C9 CAT 575MPH |
C9 CAT 575MPH |
| Speed (knots) Top/Cruise |
18/15 |
18/15 |
|
